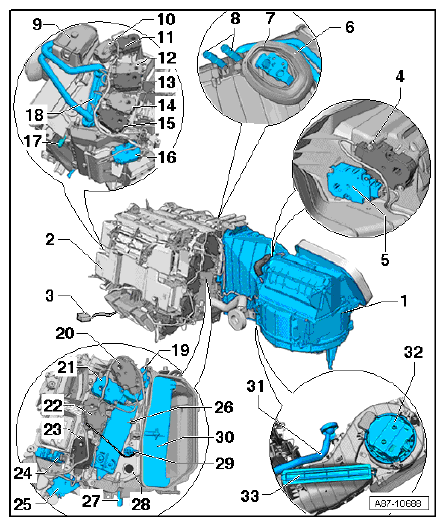

Front A/C Unit Components

  1. Air Inlet Box
  2. A/C Distribution Box
  3. Connector from A/C Distribution Box to Climatronic Control Module -J255-
  4. Recirculation Door Motor -V113-
  5. Air Flow Door Motor -V71-
  6. Expansion Valve
  7. Seal
  8. Inlet and Outlet to the Heater Core
  9. Cover for the Refrigerant Pipes to the Evaporator
  10. Left Temperature Door Motor -V158-
  11. Defroster Door Motor -V107-
  12. Left Center Vent Motor -V110-
  13. Left Side Vent Motor -V299-
  14. Left Footwell Temperature Door Motor -V411-
  15. Left Footwell Door Motor -V108-
  16. Rear Air Quantity Motor -V443-
  17. Left Side Condensation Drain
  18. Heater Core
  19. Right Temperature Door Motor -V159-
  20. Indirect Ventilation Door Motor -V213-
  21. Right Center Vent Motor -V111-
  22. Right Side Vent Motor -V300-
  23. Right Footwell Temperature Door Motor -V412-
  24. Right Footwell Door Motor -V109-
  25. Rear Temperature Door Motor -V137-
  26. Auxiliary Air Heater Control Module -J604- with Auxiliary Heater Heating Element -Z35-
  27. Right Side Condensation Drain
    G12770508Courtesy of AUDI OF AMERICA, LLC
  28. Connection for Glove Box Outlet
  29. Evaporator Vent Temperature Sensor -G263-
  30. Evaporator
  31. Hose to Glove Box Outlet
  32. Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126-
  33. Pollen Filter
