Right Side Controls

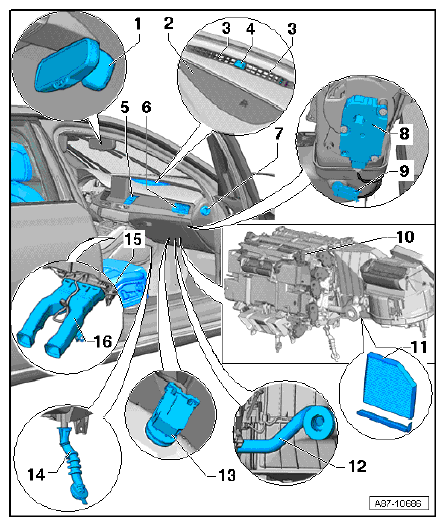

  1. Rearview Mirror with Humidity Sensor -G355-
  2. Center Instrument Panel
  3. Defroster Outlet for the Windshield
  4. Sunlight Photo Sensor -G107-
  5. Position Sensor in Right Center Vent -G627-
  6. Position Sensor in Right Side Vent -G629-
  7. Outlet To The Right Front Door
  8. Right Side Window Defroster Door Motor -V410-
  9. Right Vent Temperature Sensor -G151-
  10. A/C Unit
  11. Dust and Pollen Filter
  12. Right Footwell Vent Temperature Sensor -G262-
  13. Outlet in Glove Box
  14. Right Side Condensation Drain
  15. Passenger's Heated Seat
    • Right Front Heated Seat -Z46- with Right Front Seat Temperature Sensor -G345-
  16. Outlet from Front A/C to the Rear A/C
G12770506Courtesy of AUDI OF AMERICA, LLC
