Component Location Vehicle Positioning System Control Module -J895-, Through Model Year 2013

Component Location

In Luggage Compartment Left, On Rear Wall -1-.

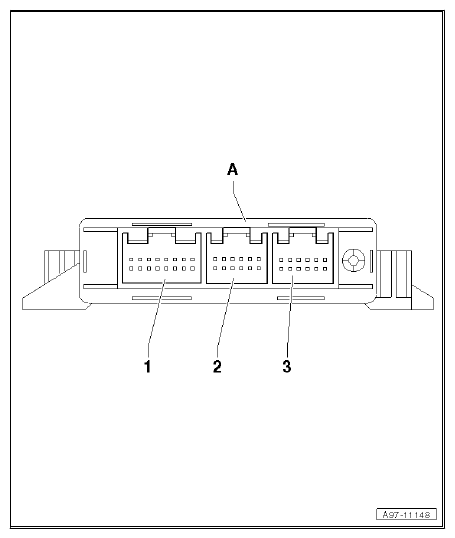

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

1. A  - Location System Control Module -J895-
2. 1  - Not Used
3. 2  - 12-Pin Connector -T12F-, Brown
4. 3  - Not Used

Courtesy of AUDI OF AMERICA, LLC
