Component Location TV Tuner -R78-, From Model Year 2014: Notes

Component Location

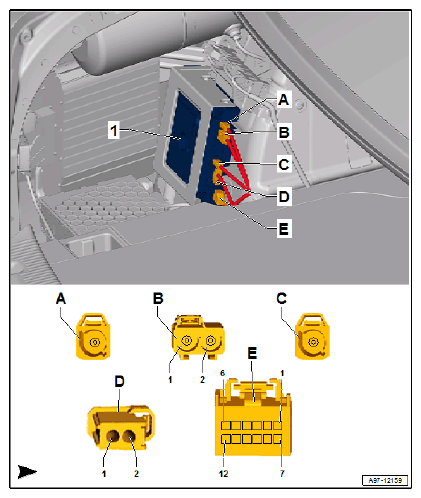

In Luggage Compartment, In Left Luggage Compartment Well -1-.

1. 1  - TV Tuner -R78-
2. A  - Double Connector -T2pz-, TV Antenna 1 -R55-
3. B  - 4-Pin Connector -T4hw-, Antenna Amplifier 2 -R111-, Antenna Amplifier 4 -R113-
4. C  - Double Connector -T2py-, DVD Changer -R161-, Control Module for Information Electronics 1 -J794-
5. D  - Double Connector -T2cn-, MOST-Bus, Black
6. E  - 12-Pin Connector -T12av-

Courtesy of AUDI OF AMERICA, LLC
