Component Location DVD Changer -R161-: Notes

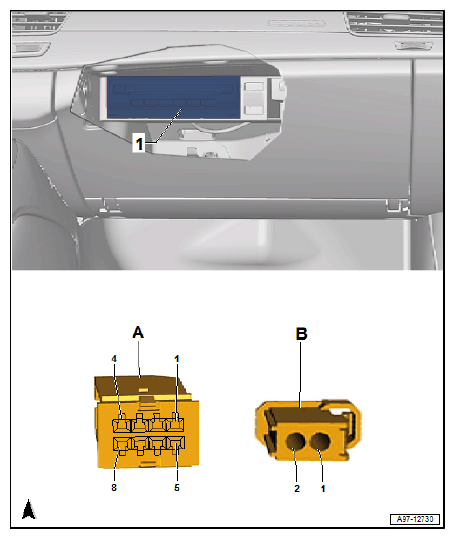

Component Location

In Glove Compartment -1-.

  1. 1  - DVD Changer -R161-
  2. A  - 8-Pin Connector -T8E-, Black
  3. B  - Double Connector -T2DN-, MOST-Bus, Black
G12770384Courtesy of AUDI OF AMERICA, LLC
