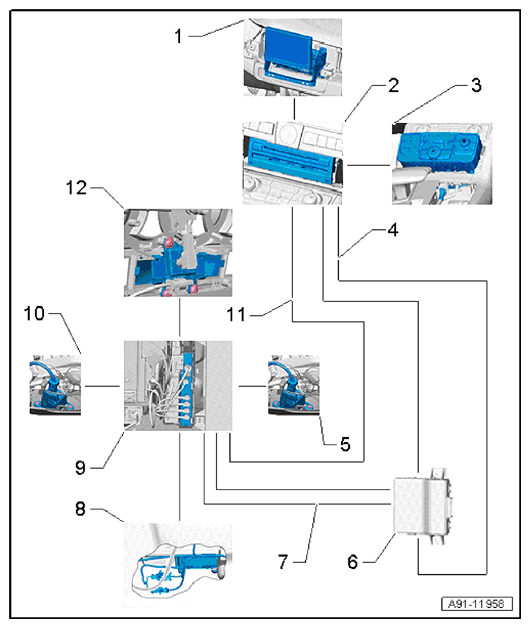

Peripheral Camera System Overview
- 1 - Front information display control head -J685- in center of the instrument panel
- 2 - Information electronics control module 1 -J794- inside the instrument panel
- 3 - Multimedia system control head -E380- in the front of the center console
- 5 - Right peripheral camera -R245- inside the right exterior mirror
- 6 - Data bus on board diagnostic interface -J533- inside the luggage compartment on the rear panel on the right side
- 8 - Rear peripheral camera -R246- inside the rear lid
- 9 - Peripheral camera control module -J928- inside the luggage compartment on the rear panel on the left side
- 10 - Left peripheral camera -R244- inside the left exterior mirror
- 11 - Peripheral camera control module -J928-
- 12 - Front peripheral camera -R243- inside the front bumper cover
