Climatronic Control Module -J255- FRONT A/C DISPLAY CONTROL HEAD, REMOVING AND INSTALLING: Installing

Installation is carried out in the reverse order while observing the following:

• When replacing a Climatronic Control Module -J255- -B-.

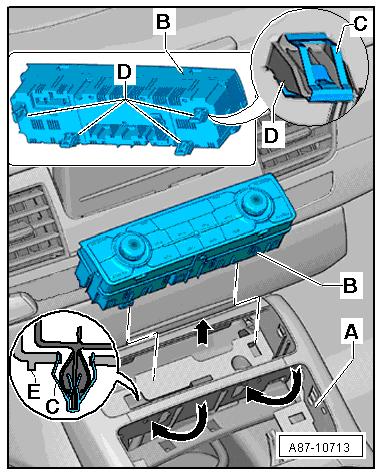

  Fig 1: Climatronic Control Module Component Location Overview

  Courtesy of AUDI OF AMERICA, LLC
• Check the clamps -C- for proper seating on brackets -D- of the Climatronic Control Module -J255- -B-.
• To prevent damage to the cover of the center console, insert the Climatronic Control Module -J255- -B- into the receiving shaft and then press in carefully.

-- After replacement/installation of the Climatronic Control Module -J255-, perform the following steps, refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function.

• Recode the Climatronic Control Module -J255- (or check the coding).
• Perform the Climatronic Control Module -J255- basic setting.
• Check the event memory of the Climatronic Control Module -J255- (correct any displayed malfunctions) and erase.
• Check the adaptation of the rear Climatronic Control Module -J255- and correct if necessary.
• Perform the output diagnostic test mode of the Climatronic Control Module -J255- (depending on the present complaint).
