Component Location Memory Seat/Steering Column Adjustment Control Module -J136-: Notes

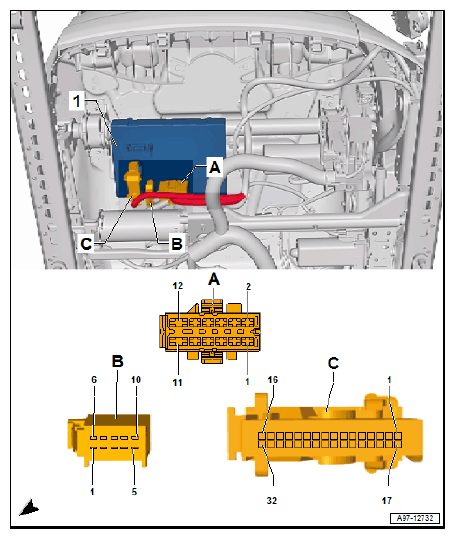

Component Location

At Bottom Of Seat -1-.

  1. 1  - Memory Seat/Steering Column Adjustment Control Module -J136-
  2. A  - 12-Pin Connector -T12AA-, Black
  3. B  - 10-Pin Connector -T10M-, Black
  4. C  - 32-Pin Connector -T32I-, Grey
G12770385Courtesy of AUDI OF AMERICA, LLC
