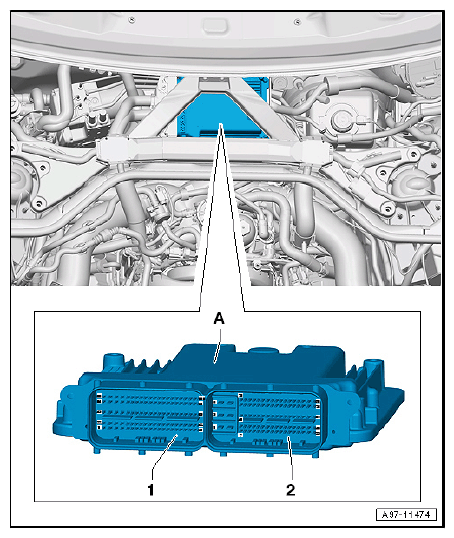

Engine Control Module (ECM) -J623- With 196-Pin, Pin Connector

  1. A  - Engine Control Module (ECM) -J623-
  2. 1  - 105-Pin Connector -T105-, Black
  3. 2  - 91-Pin Connector -T91-, Black
G12770329Courtesy of AUDI OF AMERICA, LLC
