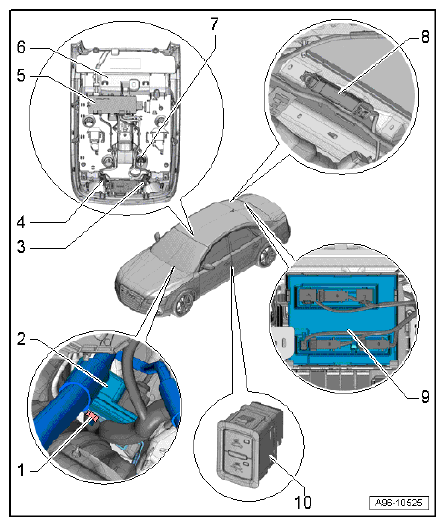

Ultrasonic Interior Monitoring Assembly Overview: Notes
- Nut
- Alarm Horn -H12- → ALARM HORN
- Right Interior Monitoring Individual Sensor
- Can Only Be Replaced Together With The Anti-Theft Alarm System Sensor -G578-
- Left Interior Monitoring Individual Sensor
- Can only be replaced together with the Anti-theft alarm system sensor -G578-
- Anti-theft alarm system sensor -G578-
- Interior Lights/Front Reading Lights
- Individual Sensor
- For the Anti-theft alarm system sensor -G578-
- Antenna amplifier -R24-
- With Central locking and anti-theft alarm system antenna -R47-
- Mounted on rear piller
- Comfort system central control module -J393-
- Interior monitoring switch -E183-/Alarm system deactivation switch -E217-
