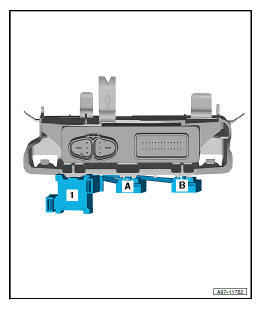

Fuse Panel On Reducing Agent Metering System Control Module -J880- Layout

  1. Reducing Agent Heating Fuse 30 -S364-, 30 A
  2. Reducing Agent Metering System Fuse 30 -S363-, 10 A

    Back To Overview  → OVERVIEW OF FUSES

G12770275Courtesy of AUDI OF AMERICA, LLC
