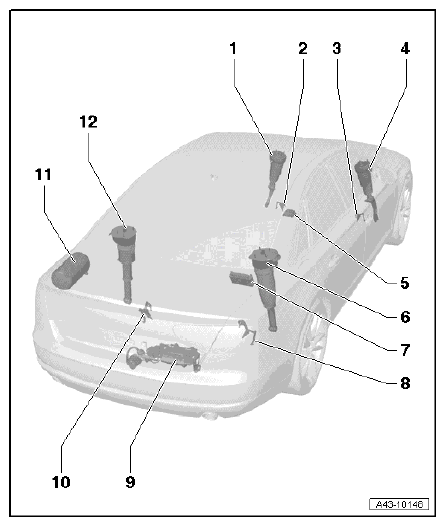

Level Control System Overview: Notes
- Left Front Air Spring Shock Absorber
- With Left front damping adjustment valve -N336-
- Left front level control system sensor -G78- → BANG & OLUFSEN® COMPONENT OVERVIEW
- Right front level control sensor -G289- → BANG & OLUFSEN® COMPONENT OVERVIEW
- Right Front Air Spring Shock Absorber
- Right front damping adjustment valve -N337-
- Sensor electronics control module -J849- → BANG & OLUFSEN® COMPONENT OVERVIEW
- Bolted to the center tunnel
- Rear Right Air Spring Shock Absorber
- With Right rear damping adjustment valve -N339-
- Level control system control module -J197- → SOUND SYSTEM CONTROL MODULE OVERVIEW
- Right rear level control system sensor -G77- → NAVIGATION SYSTEM COMPONENT OVERVIEWS
- Air Supply Unit with Valve Block
- Left rear level control system sensor -G76- → NAVIGATION SYSTEM COMPONENT OVERVIEWS
- Pressure Reservoir
- Rear Left Air Spring Shock Absorber
- With Left rear damping adjustment valve -N338-
