Component Location NOX Sensor Control Module 2 -J881-: Notes

Component Location

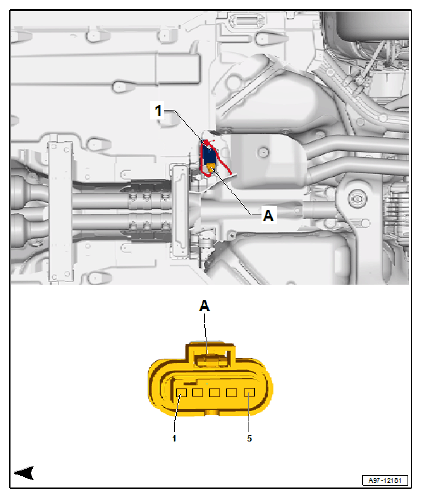

On Vehicle Floor Below Rear Seat, Left -1-.

  1. 1  - NOX Sensor 2 Control Module -J881-, V8 TDI
  2. A  - 5-Pin Connector -T5aw-
G12770450Courtesy of AUDI OF AMERICA, LLC
