Component Location Level Control System Control Module -J197-, Through Model Year 2013

Component Location

In Luggage Compartment Right, On Rear Wall -1-.

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

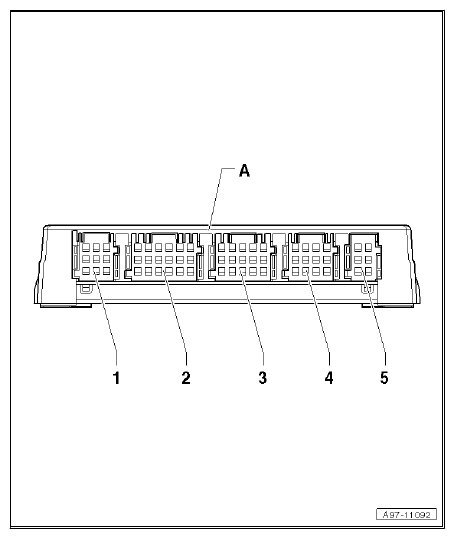

1. A  - Level Control System Control Module -J197-
2. 1  - 9-Pin Connector -T9A-, Grey
3. 2  - 18-Pin Connector -T18B-, Grey
4. 3  - 15-Pin Connector -T15A-, Purple
5. 4  - 12-Pin Connector -T12A-, Green
6. 5  - 6-Pin Connector -T6B-, Blue

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → COMP. LOC. CONTROL MODULES VEHICLE REAR  .
