Component Location Data Bus On Board Diagnostic Interface -J533-, From Model Year 2014: Notes

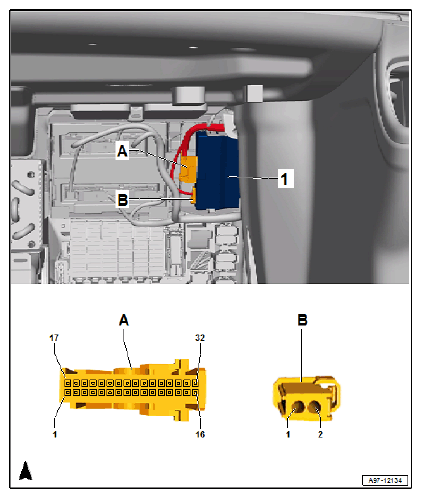

Component Location
In Luggage Compartment Right, On Rear Wall -1-.
- 1
- Data Bus On Board Diagnostic Interface -J533-
- A
- 32-Pin Connector -T32F-, Black
- B
- Double Connector -T2GB-, MOST-Bus, Black
 Courtesy of AUDI OF AMERICA, LLC
|
