Overview - Start/Stop System Component Location

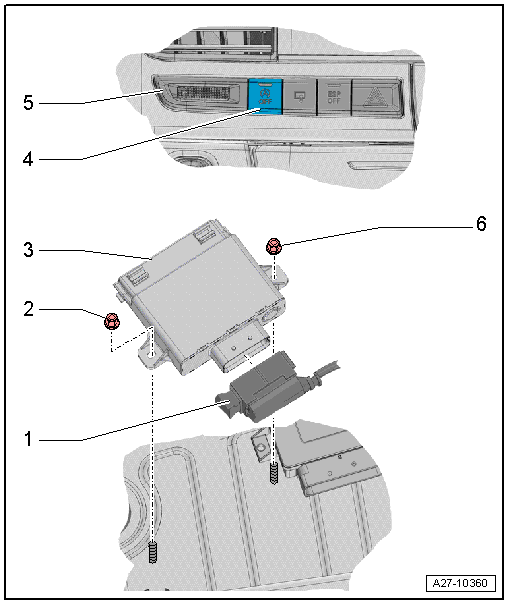

Fig 1: Identifying Start/Stop System Component Overview

Courtesy of AUDI OF AMERICA, LLC

1. Connector
2. Nut
   • 3 Nm
3. Voltage Stabilizer -J532-
   • Removing and installing, refer to VOLTAGE STABILIZER, REMOVING AND INSTALLING .
4. Start/Stop Mode Button -E693-
   • Removing and installing, refer to LEFT FRONT CENTER CONSOLE CONTROL HEAD -E461- WITH -E693-, -E656-, -E462-, -E229-, -E256- AND -E149-, REMOVING AND INSTALLING .
5. Front/Center Console Control Head
6. Nut
   • 3 Nm
