Information Electronics Control Module 2 -J829-, REMOVING AND INSTALLING: Removing

-- Fold the center armrest down and back.

-- Remove any DVDs or SD carts remaining in the Information Electronics Control Module 2 -J829-.

-- Insert the two clips from the Radio Removal ToolT10057 into the slits in the Information Electronics Control Module 2 -J829- -1- until they lock into place. Points on the grip eyelets of tool face outward.

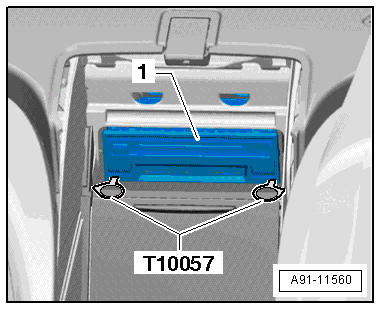

Fig 1: Identifying Information Electronics Control Module 2 -J829- -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Information Electronics Control Module 2 -J829- -1- from the mounting frame.

-- Press the release tabs on the Information Electronics Control Module 2 -J829- and remove the Radio Removal ToolT10057.

-- Release and disconnect the connectors from the Information Electronics Control Module 2 -J829-.

-- Insert the Fiber-Optic Repair Set - Connector Protective CapsVAS6223/9 -1- onto the MOST bus connector -2-.

Fig 2: Identifying Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC
