Right Engine Mount: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear engine cover -top arrows-.

Fig 1: Engine Covers -1- & -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air filter housing. Refer to Removing .

-- Remove the seal -1- and remove the plenum chamber cover -2-.

Fig 2: Removing Rubber Seal And Plenum Chamber Cover

Courtesy of AUDI OF AMERICA, LLC

-- Mount the 10 - 222 A /4 with the T40091/3 T40093/1 and T40093/2 to the strut towers.

Fig 3: Securing Adapter 10 - 222 A /4 Using Binder T40091/3 As Well As Supports T40093/1 And T40093/2 At Suspension Strut Domes

Courtesy of AUDI OF AMERICA, LLC

Support for left and right side of vehicle is marked.

-- Mount the additional parts from the 10 - 222 A, T40091 and T40093 as illustrated. Position the T40093/3 on the notches on the longitudinal members.

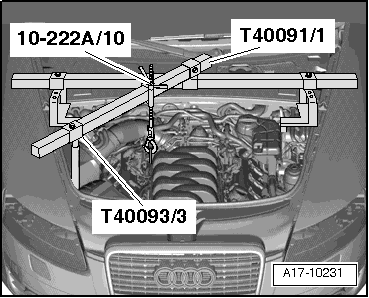

Fig 4: Assembling Other Components Of Engine Support Bridge 10-222 A

Courtesy of AUDI OF AMERICA, LLC

-- Engage the 10 - 222 A /10 into the left engine lifting eyelet.

-- Tension the engine with the spindle.

-- Remove noise insulation. Refer to Description and Operation .

Fig 5: View Of Front Noise Insulation And Mounting Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2- for the left and right stabilizer mounts and lower the stabilizer bar slightly.

Fig 6: Removing Bolts For Left And Right Stabilizer Bar Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -3-.

Fig 7: Identifying Nuts, Bolts, And Right Side Engine Mount Carrier

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2- and remove the right engine mount bracket.

-- Disconnect the electrical connector -1- on the right electron-hydraulic engine mount solenoid valve -N145-.

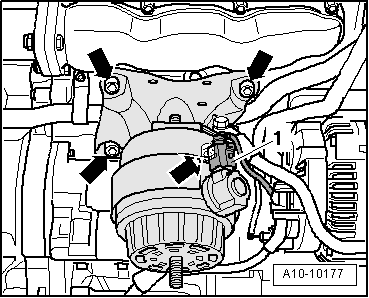

Fig 8: Right Side Electro-Hydraulic Engine Mount, Remove/Install Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the engine supports with the engine brackets.

-- Remove the nut -arrow- and remove the engine bracket from the engine support.

Fig 9: Removing Nut And Engine Mount From Engine Support

Courtesy of AUDI OF AMERICA, LLC
