Stationary Selector Mechanism Cover

Removing

-- Remove the handle on the selector lever. Refer to SELECTOR LEVER HANDLE, WITH STATIONARY SELECTOR MECHANISM COVER .

-- Turn off the ignition.

-- Open the ashtray in the center console.

-- Remove the cover for the selector lever -arrows-.

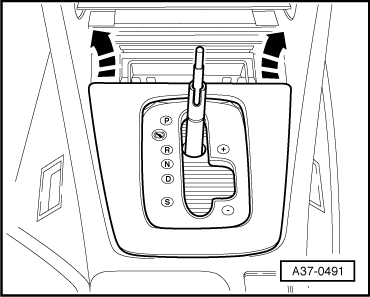

Fig 1: Opening Ashtray In Center Console And Removing Trim

Courtesy of AUDI OF AMERICA, LLC

-- Release all 4 clips -arrows- and pull cover -1- with guide upwards to remove.

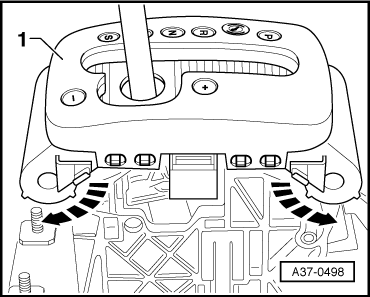

Fig 2: Releasing Clips And Pulling Cover With Guide Upward For Removal

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector.

Installing

Install in reverse order, paying attention to the following:

NOTE:

When connecting the electrical connector, make sure that the contacts of the circuit board do not bend and that the tabs of the cover are not cancelled.

-- Install the handle on the selector lever. Refer to SELECTOR LEVER HANDLE, WITH STATIONARY SELECTOR MECHANISM COVER .
