Oil Level In Bevel Box, Checking And Topping Off
Special tools and workshop equipment required
- Oil Collecting and Extracting Device V.A.G 1782
- Protective eyewear
NOTE:
- Refer to REPAIR INFORMATION .
- Refer to CLEAN WORKING CONDITIONS .
- Observe notes for disposal regulations for oils, refer to TRANSMISSION .
Test Conditions
- Move the vehicle onto a 4-column shop hoist or over a work pit so it is completely level.
- The engine is off.
Test Sequence
- Tightening specification, refer to OIL DRAIN AND INSPECTION PLUG IN BEVEL BOX OVERVIEW .
-- Remove the noise insulation. Refer to Removal and Installation .
NOTE:
Depending on the version, different noise insulation may be installed.
WARNING:
Always keep a safe distance away from the radiator fan whenever working on the cooling system. Fan can switch on by itself - risk of injury!
-- Place the V.A.G 1782 under the transmission.
WARNING:
Wear protective eyewear.
Wear protective gloves.

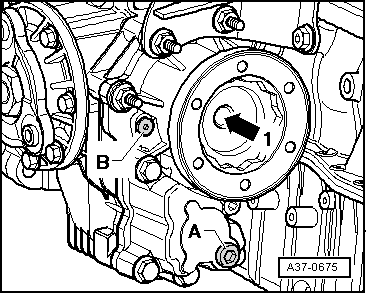

-- Remove oil filler hole plug -B-.
- Specified value: Oil level up to bottom edge of oil filler hole.
-- Fill up oil for bevel box.
-- Replace and tighten the oil filler plug -B-.
