Special Tools

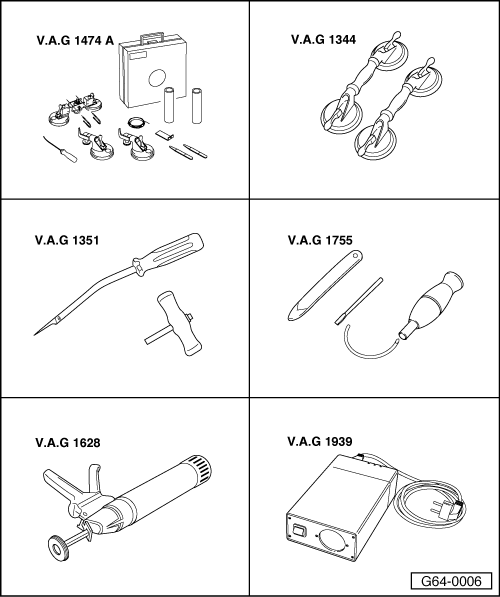

Fig 1: Special Tools And Workshop Equipment Required

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Cutting tool kit V.A.G 1474 B
• Suction lifter V.A.G 1344
• Cutting tools for glass V.A.G 1351
• Window removing kit V.A.G 1755
• Cartridge gun V.A.G 1628
• Cartridge heater V.A.G 1939A
• Electric cutter V.A.G 1561 A

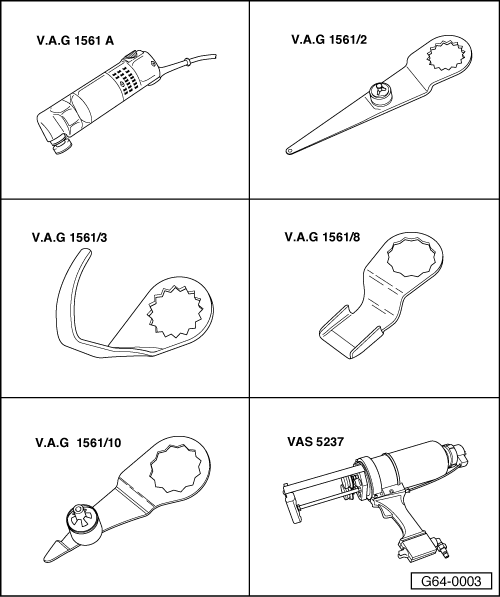

Fig 2: Special Tools And Workshop Equipment Required

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Blade, offset V.A.G 1561/2
• Blade, offset V.A.G 1561/3
• Scraper V.A.G 1561/8
• Blade, offset V.A.G 1561/10
• Double cartridge gun VAS 5237
• Spooling tool V.A.G 1654 A
  Fig 3: Spooling Tool V.A.G 1654 A

  Courtesy of AUDI OF AMERICA, LLC
