Special Tools

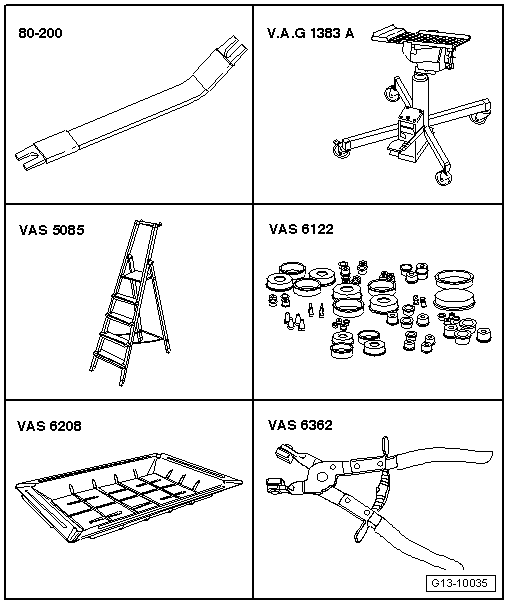

Fig 1: Special Tools And Workshop Equipment (1 Of 2)

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Pry Lever - Rmv Outside Mirror 80 - 200
• Engine/Transmission Jack V.A.G 1383 A
• Step Ladder VAS 5085
• Drip Tray VAS 6208
• Hose Clip Pliers VAS 6362

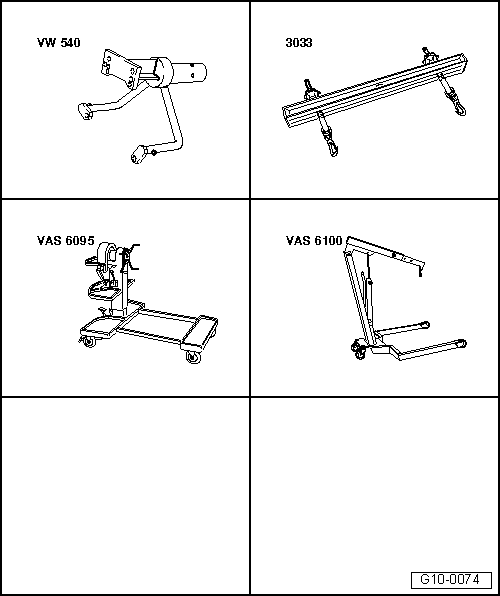

Fig 2: Special Tools And Workshop Equipment (2 Of 2)

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Holding Fixture VW 540
• Lifting Tackle 3033
• Engine and Transmission Holder VAS 6095
• Shop Crane VAS 6100

Special tools and workshop equipment required

• Engine Support Bridge 10 - 222 A
  Fig 3: Identifying Engine Support Bridge 10 - 222 A

  Courtesy of AUDI OF AMERICA, LLC
• Bracket 2024 A /1, part of the Engine Sling 2024 A
  Fig 4: Identifying Bracket 2024 A /1

  Courtesy of AUDI OF AMERICA, LLC
• Locking Pin T10060 A
  Fig 5: Identifying Locking Pin T10060 A

  Courtesy of AUDI OF AMERICA, LLC
• Engine/Trans. Support T10012

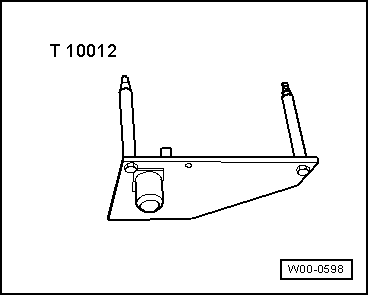

  Fig 6: Identifying Engine/Trans. Support T10012

  Courtesy of AUDI OF AMERICA, LLC
• Special Hook 10 - 222 A /20
  Fig 7: Identifying Adapter 10 - 222 A/820

  Courtesy of AUDI OF AMERICA, LLC
• Bracket 2024 A /1, part of the Engine Sling 2024 A
  Fig 8: Identifying Bracket 2024 A /1

  Courtesy of AUDI OF AMERICA, LLC
• Shop Crane VAS 6100
  Fig 9: Identifying Shop Crane VAS 6100

  Courtesy of AUDI OF AMERICA, LLC
