Camshaft Position (CMP) Sensor -G40-

-- Remove the ribbed belt. Refer to [For engine(s) CBEA] Removal and Installation .

-- Remove vibration damper. Refer to [For engine(s) CBEA] Removal and Installation .

-- Remove toothed belt. Refer to [For engine(s) CBEA] Removal and Installation .

-- Remove the Exhaust Gas Recirculation (EGR) vacuum regulator solenoid valve -N18-. Refer to [For engine(s) CBEA] Removal and Installation .

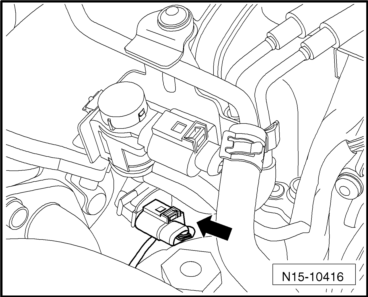

-- Disconnect the connector -arrow- from the CMP sensor and pull the connector out of the mount.

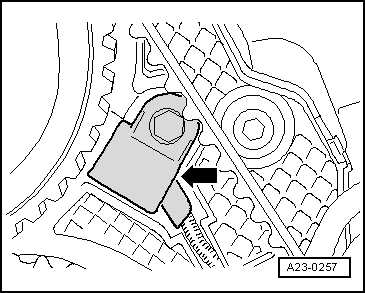

-- Remove the CMP sensor -arrow-.

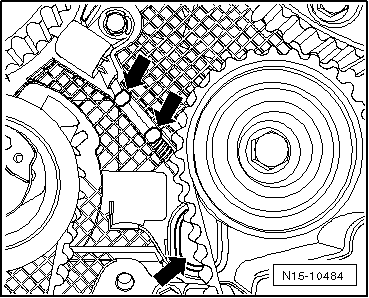

-- Remove the ribs with a screwdriver and remove the cover for the repair opening -arrows-.

-- Remove the CMP sensor from the cylinder head and guide the connector through the opening in the toothed belt guard.

Installing

Install in reverse order of removal. When doing this note the following:

• Seal off the opening in the toothed belt guard with a rubber plug.

-- Mount the toothed belt and adjust the valve timing. Refer to [For engine(s) CBEA] Removal and Installation .

-- Install vibration damper. Refer to [For engine(s) CBEA] Removal and Installation .

-- Install the ribbed belt. Refer to [For engine(s) CBEA] Removal and Installation .
