Cellular Phone Preparation, Layout

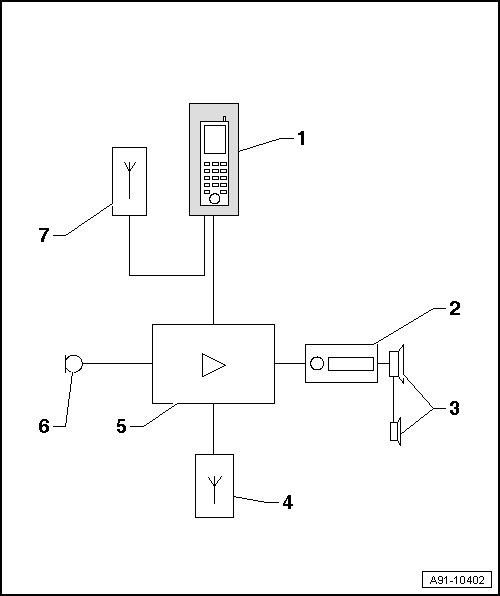

Fig 1: Identifying Cellular Phone Preparation, Layout
GWWA91-10402Courtesy of AUDI OF AMERICA, LLC
  1. Telephone Baseplate -R126- with Cellular Telephone -R54- to the Instrument Panel/Center Armrest
  2. Radio -R- /Operating Electronics, Navigation Control Module -J402- in Top of Center Console
  3. Sound Systems
  4. Bluetooth Antenna -R152- at Telephone Transceiver -R36-
  5. Telephone Transceiver -R36- in Electronics Box Under Left Front Seat
  6. Telephone Microphone -R38- in Front Interior Light -W1-
  7. Antenna -R11- (Ter/Sat/GPS/GSM) Roof Antenna
