Speed Sensor At Rear Axle With All-Wheel Drive: Removing

-- Release connector -1- at speed sensor and disconnect.

Fig 1: Connector At Speed Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolt -1-.

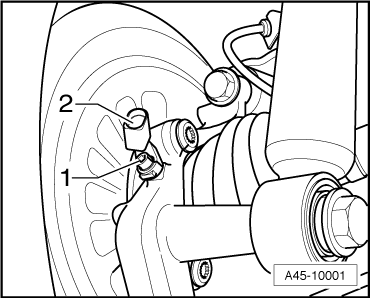

Fig 2: Speed Sensor From Stub Axle

Courtesy of AUDI OF AMERICA, LLC

-- Pull speed sensor -2- out from stub axle.
