Catalytic Converter Heating Control Module 1 -J1021-

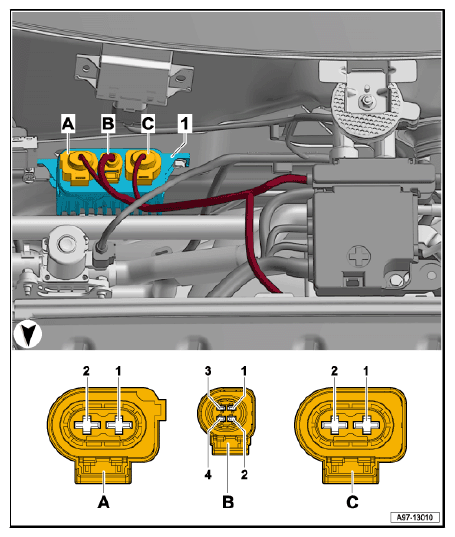

Component location

In Cowl Area

  1. 1  - Catalytic converter heating control module 1 -J1021-
  2. A  - Double connector -T2er-
  3. B  - 4-pin connector -T4cd-
  4. C  - Double connector -T2es-
G12779061Courtesy of AUDI OF AMERICA, LLC
