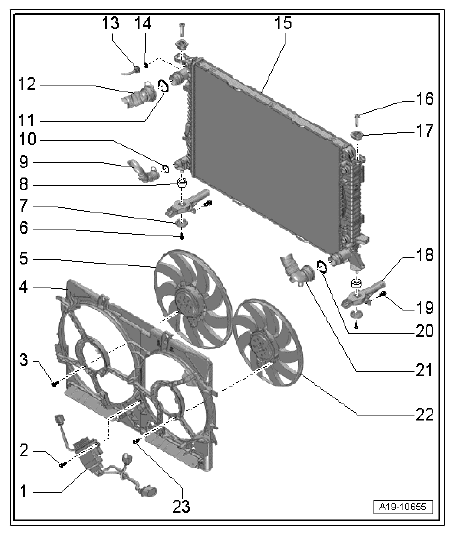

Cooling Fans And Cooling Pump Overview: Notes

1. 1  - Coolant Fan Control (FC) Control Module -J293-
   • Either Separate Or Integrated In The Coolant Fan -V7-, Depending On Equipment
2. 5  - Coolant Fan -V7-
   • With Integrated Coolant Fan Control (FC) Control Module -J293- Depending On Equipment
3. 22  - Coolant Fan 2 -V177-
   • Integrated with Coolant Fan Control (FC) Control Module 2 -J671- (Radiator Fan Control 1000 W)
   • Not With The 400 W Fan Activation

Courtesy of AUDI OF AMERICA, LLC

Top → COMP. LOC. ENGINE

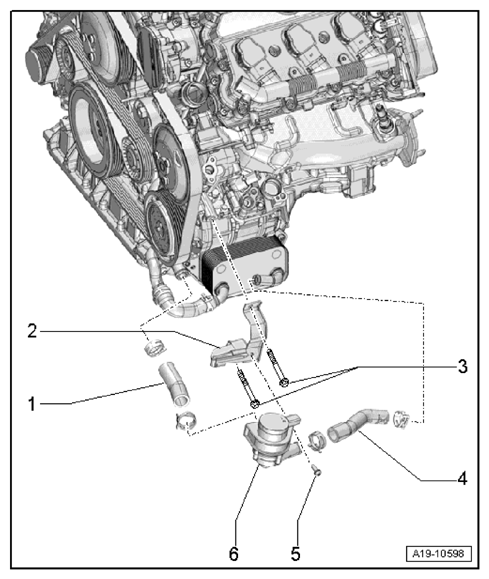

After-Run Coolant Pump CTUC/CALB

1. 6  - After-Run Coolant Pump -V51-

Courtesy of AUDI OF AMERICA, LLC

Top → COMP. LOC. ENGINE

After-Run Coolant Pump, CAEB/CPMA

1. After-Run Coolant Pump -V51-

Top → COMP. LOC. ENGINE

Courtesy of AUDI OF AMERICA, LLC

Coolant Pump

1. Connector for Coolant Pump -V50-

Top → COMP. LOC. ENGINE

Courtesy of AUDI OF AMERICA, LLC
