Left Rear Door Control Module -J388-

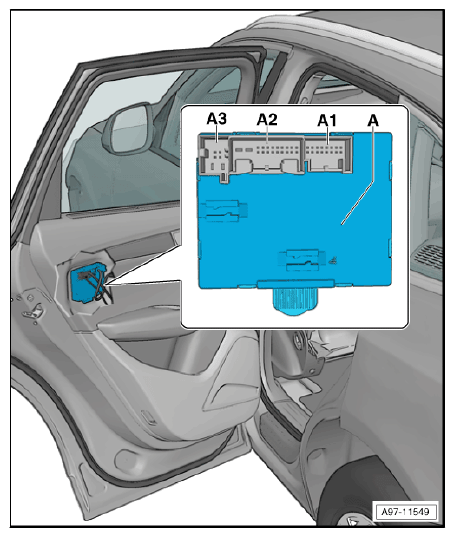

Component Location:

In Left Rear Door.

  1. A  - Left Rear Door Control Module -J388-
  2. A1  - 16-Pin Connector -T16o-
  3. A2  - 20-Pin Connector -T20h-
  4. A3  - 6-Pin Connector -T6au-
G12779078Courtesy of AUDI OF AMERICA, LLC
