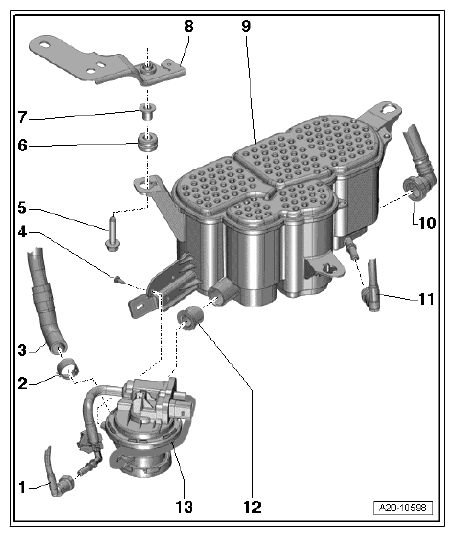

EVAP Canister Overview: Notes

  1. 9  - EVAP Canister
    • Located At The Bottom Of Spare Wheel Well
  2. 13  - Leak Detection Pump (LDP) -V144-
    • Located On The Vehicle Floor Under The Rear Left Floor Panel
G12779267Courtesy of AUDI OF AMERICA, LLC

For 2.0L Gasoline Engine
