Engine Sound Generator Control Module -J943-

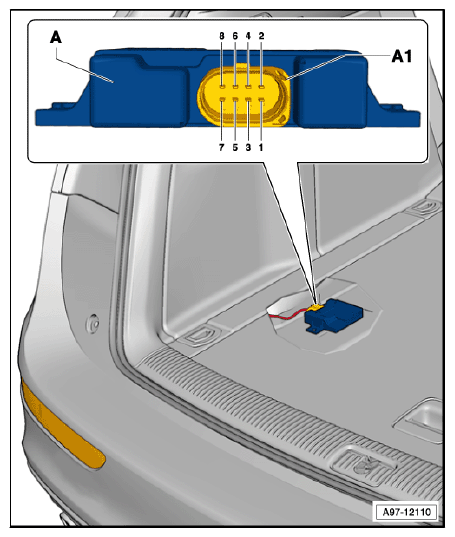

Component Location:

In Left Luggage Compartment

  1. Engine Sound Generator Control Module -J943-
  2. 8-Pin Connector -T8s-
G12779100Courtesy of AUDI OF AMERICA, LLC
