Battery Monitoring Control Module -J367-

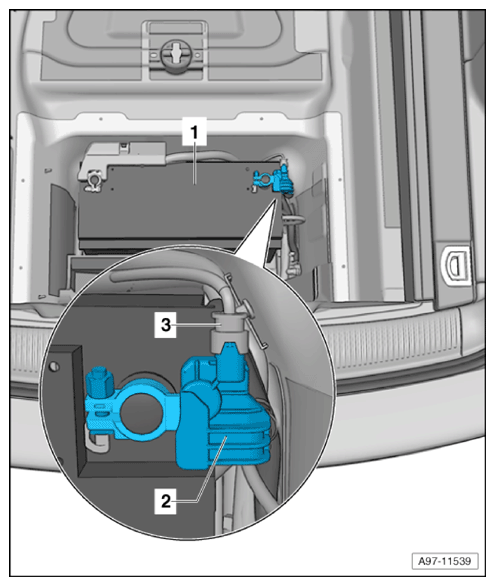

Component Location:

On Negative Terminal Of Battery -A-.

  1. Battery -A-
  2. Battery Monitoring Control Module -J367-
  3. Double Connector -T2x-
G12766925Courtesy of AUDI OF AMERICA, LLC
