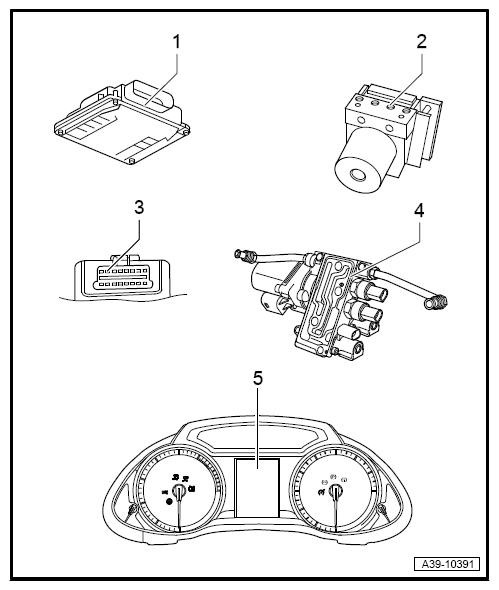

All-Wheel Drive System Overview: Notes
- All Wheel Drive Control Module -J492-
- Located In The Trunk
- ABS Control Module -J104-
- Diagnostic Connector
- Hydraulic Control Unit
- Located at the final drive in the back → HYDRAULIC CONTROL UNIT
- Hydraulic Control Unit Consists Of:
- All Wheel Drive Pump -V415-
- Oil Pressure/Temperature Sensor 2 -G640-
- Oil Pressure/Temperature Sensor -G437-
- All Wheel Drive Clutch Valve 2 -N446-
- All Wheel Drive Clutch Valve -N445-
- Instrument Panel Display
