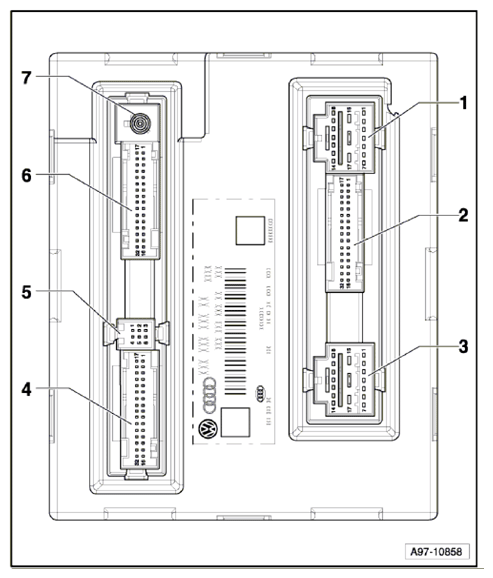

Connectors On Comfort System Central Control Module -J393-

  1. 17-Pin Connector, black (Connector A) -T17o-
  2. 32-Pin Connector, black (Connector B) -T32c-
  3. 17-Pin Connector, brown (Connector C) -T17p-
  4. 32-Pin Connector, blue (Connector F) -T32e-
  5. 6-Pin Connector (Connector G) -nicht belegt-
  6. 32-Pin Connector, grey (Connector E) -T32d-
  7. Single Connector, grey (Connector D) -T1h-
G12766918Courtesy of AUDI OF AMERICA, LLC
