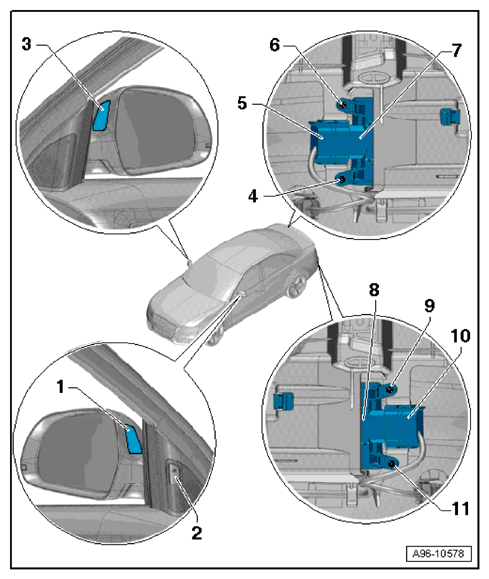

Lane Change Assist Assembly Overview: Notes

  1. 1  - Lane Change Assistance Warning Lamp (In Driver Exterior Mirror) -K233-
  2. 2  - Lane Change Assistance Button -E530-
  3. 3  - Lane Change Assistance Warning Lamp (in front Passenger exterior mirror) -K234-
  4. 7  - Lane Change Assistance Control Module -J769-
  5. 8  - Lane Change Assistance Control Module 2 -J770-
