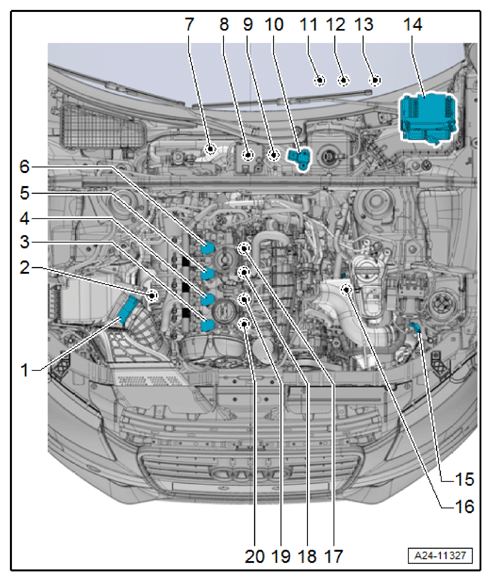

2.0L CAEB/CAED/CPMA/CPMB Engine Compartment: Notes
- Mass Airflow Sensor -G70-
- Right Electro-Hydraulic Engine Mount Solenoid Valve -N145-
→ LEFT ELECTROHYDRAULIC ENGINE MOUNT SOLENOID VALVE -N144-
- Optional based on production date.
- Ignition Coil 1 with Power Output Stage -N70-
- Ignition Coil 2 with Power Output Stage -N127-
- Ignition Coil 3 with Power Output Stage -N291-
- Ignition Coil 4 with Power Output Stage -N292-
- Transmission Neutral Position Sensor -G701-
→ TRANSMISSION NEUTRAL POSITION SENSOR -G701-
- Optional based on production date and for vehicles with a manual transmission
- Transmission Coolant Valve -N488-
→ TRANSMISSION COOLANT VALVE -N488-
- For Vehicles with a manual transmission and transmission fluid heater
- Transmission Range Gear Recognition Switch -F208- and Gear Recognition Sensor -G604-
→ TRANSMISSION RANGE GEAR RECOGNITION SWITCH -F208- AND GEAR RECOGNITION SENSOR -G604-
- Optional based on production date and for vehicles with a manual transmission
- Brake Booster Pressure Sensor -G294-
- Optional based on vehicle equipment
- Accelerator Pedal Position Sensor -G79-/Accelerator Pedal Position Sensor 2 -G185- → ACCELERATOR PEDAL MODULE
- Brake Lamp Switch -F- → ACCELERATOR PEDAL MODULE
- Clutch Position Sensor -G476-
→ ACCELERATOR PEDAL MODULE
- Includes Clutch Pedal Switch -F36-/Clutch Pedal Starter Interlock Switch -F194-
- For vehicles with manual transmission
- Engine Control Module -J623-
- Charge Air Pressure Sensor -G31-
- Left Electrohydraulic Engine Mount Solenoid Valve -N144-
→ LEFT ELECTROHYDRAULIC ENGINE MOUNT SOLENOID VALVE -N144-
- Optional based on production date.
- Cylinder 4 Fuel Injector -N33-
- Cylinder 3 Fuel Injector -N32-
- Cylinder 2 Fuel Injector -N31-
- Cylinder 1 Fuel Injector -N30-
