Multimedia Control Head -E380-

Component Location:

On The Center Console.

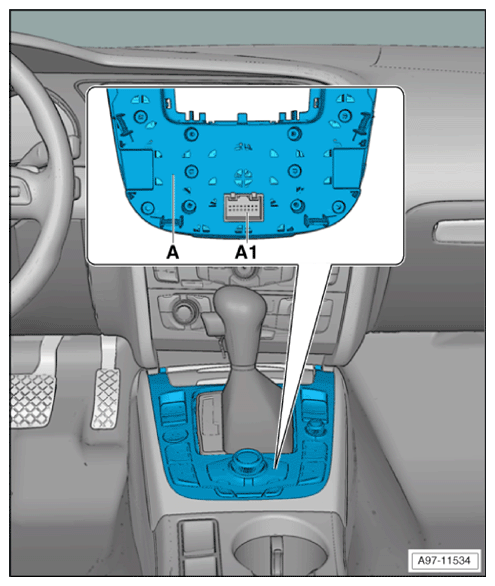

  1. A  - Multimedia Control Head -E380-
  2. A1  - 16-Pin Connector -T16c-
G12766910Courtesy of AUDI OF AMERICA, LLC
