Front Passenger's Door Control Module -J387-

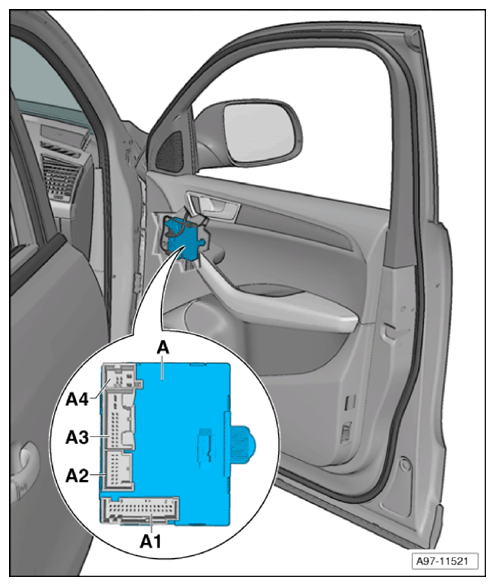

Component Location Front Passenger's Door Control Module -J387-:
In Front Passenger's Door
- A
- Front Passenger's Door Control Module -J387-
- A1
- 32-Pin Connector -T32l-
- A2
- 16-Pin Connector -T16n-
- A3
- 20-Pin Connector -T20g-
- A4
- 6-Pin Connector -T6ao-
 Courtesy of AUDI OF AMERICA, LLC
|
