Fresh Air Blower Control Module -J126-

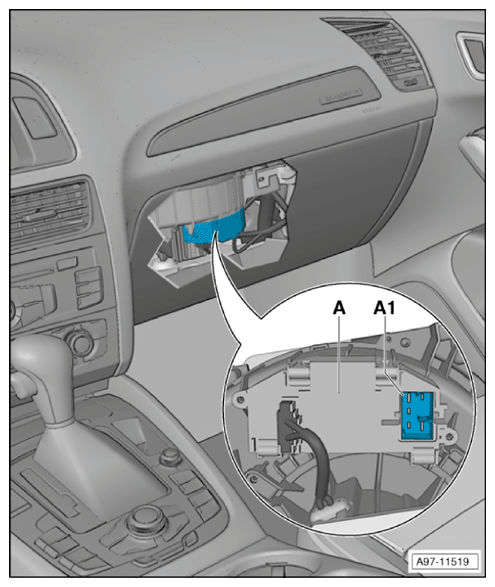

Component Location:

In Front Passenger's Footwell, Behind Glove Compartment

  1. A  - Fresh Air Blower Control Module -J126-

    A1  - 6-Pin Connector, brown -T6y-

G12766895Courtesy of AUDI OF AMERICA, LLC
