Connectors On Towing Recognition Control Module -J345-

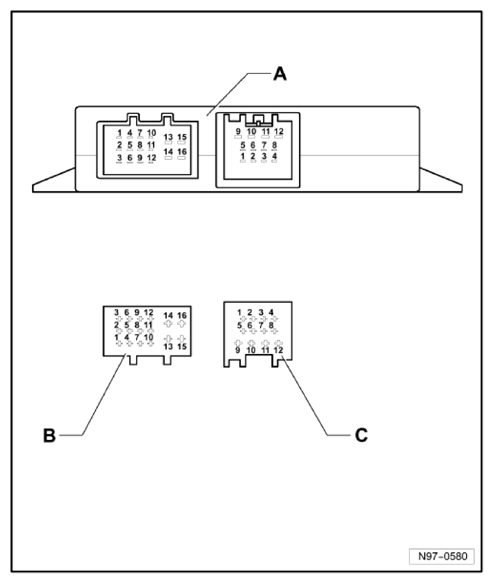

  1. Towing Recognition Control Module -J345-

    Pin Connectors:

  2. 16-Pin Connector, black -T16d-
  3. 12-Pin Connector, red -T12d-
G12766920Courtesy of AUDI OF AMERICA, LLC
