Component Locations
>>
Electrical Components Locations & Connector End Views
>>
Comp. LOC. Control Modules Vehicle Cabin
>>
Control Modules In Right Luggage Compartment
>>
Connector On Electronic Damping Control Module -J250-
Connector On Electronic Damping Control Module -J250-
Electronic Damping Control Module -J250-

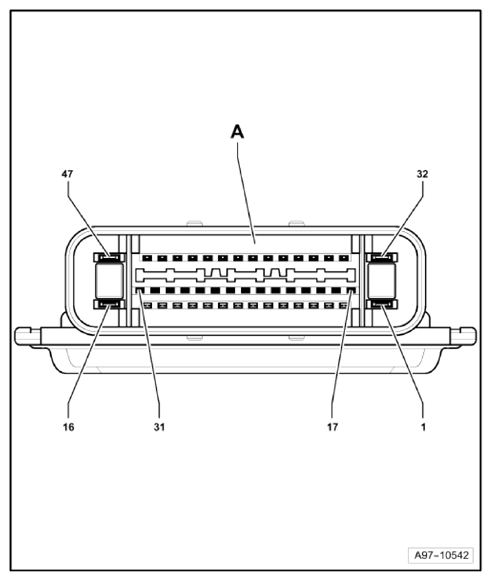

Connector:
47-Pin Connector -T47a-
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
