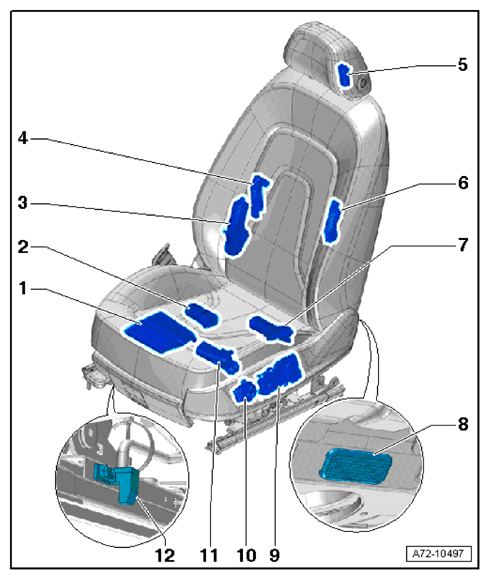

Power Seat Component Overview: Notes

• Driver side: Memory Seat/Steering Column Adjustment Control Module -J136-
• Passenger side: Passenger Memory Seat Control Module -J521-
• Comfort driver seat: Left Front Seat Ventilation Control Module -J800-
• Comfort front passenger seat: Right Front Seat Ventilation Control Module -J799-

• Driver side: Driver Seat Forward/Back Adjustment Motor -V28- with Driver Seat Forward/Back Adjustment Sensor -G227-
• Passenger side: Front Passenger Seat Forward/Back Adjustment Motor -V31-

• Driver side: Driver Backrest Adjustment Motor -V45- with Driver Backrest Adjustment Sensor -G230-
• Passenger side: Front Passenger Backrest Adjustment Motor -V46-

• Driver side: Driver Seat Lumbar Support Height Adjustment Motor -V129-
• Passenger side: Front passenger Seat Lumbar Support Height Adjustment Motor -V130-

• Driver side: Driver Head Restraint Adjustment Motor -V103-
• Passenger side: Front Passenger Head Restraint Adjustment Motor -V104-

Courtesy of AUDI OF AMERICA, LLC

Power Seat Component Overview continued

• Driver side: Driver Seat Lumbar Support Curvature Adjustment Motor -V125-
• Passenger side: Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-

• Driver side: Driver Seat Height Adjustment Motor -V245-
• Passenger side: Front Passenger Seat Height Adjustment Motor -V246-

• Driver side: Driver Seat Adjustment Control Head with: -E470-
• Passenger side: Front Passenger Seat Adjustment Control Head -E471-

• Driver side: Driver Seat Lumbar Support Adjustment Switch -E176-
• Passenger side: Front Passenger Seat Lumbar Support Adjustment Switch -E177-

• Driver side: Driver Seat Angle Adjustment Motor -V243-
• Passenger side: Front Passenger Seat Angle Adjustment Motor -V244-

• Driver side: Driver Seat Position Sensor -G553-
• Passenger side: Front Passenger Seat Position Sensor -G554-

Courtesy of AUDI OF AMERICA, LLC
