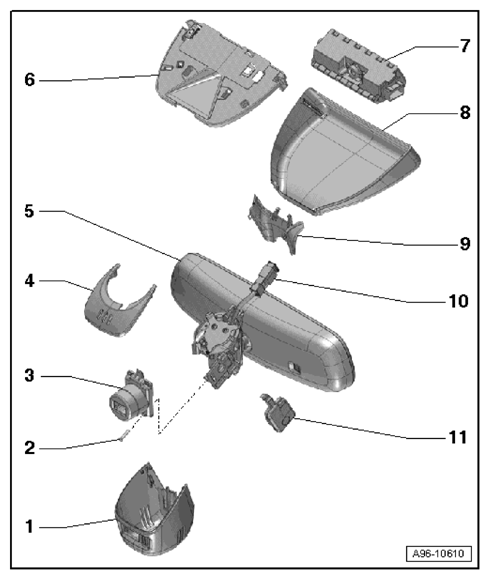

Headlamp Assistant, Humidity Sensor And Lane Assist Overview: Notes
- 1
- Front Cover
- For the housing for the Automatic High Beam Control Module -J844- with Light Recognition Sensor -G399-
- 3
- Headlamp Assistant
- Automatic High Beam Control, Control Module -J844-
- Light Recognition Sensor -G399-
- If the Automatic High Beam Control Module -J844- is faulty, it is not possible to replace the Light Recognition Sensor -G399-, the whole rearview mirror must be replaced
- 5 - Interior Rearview Mirror
- 6
- Upper Cover
- For the directional stabilization assistance control module -J759-
- 7 - Directional Stabilization Assistance Control Module -J759-
- 8
- Lower Cover
- For the directional stabilization assistance control module -J759-
- 11
- Humidity Sensor -G355-
