Anti-Theft Systems/Ultrasonic Interior Monitoring: Notes

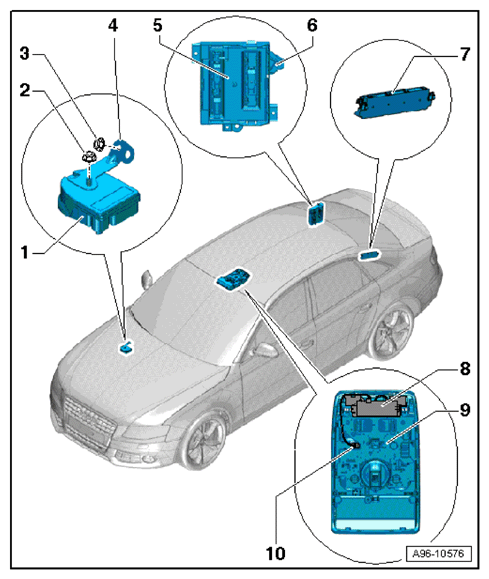

NOTE: The Radar Interior Monitoring Control Module 1 -G303- and Inclination-/Anti-Theft Control Module -J529- were combined in one component, the Anti-Theft Alarm System Sensor -G578-.
  1. 1  - Alarm Horn -H12-
  2. 5  - Comfort System Central Control Module -J393-
  3. 7  - Central Locking and Anti-Theft Alarm System Antenna -R47-
    • Integrated in the rear window
  4. 8  - Anti-Theft Alarm System Sensor -G578-
  5. 9  - Interior lights/front reading lights → ANTI-THEFT ALARM SYSTEM SENSOR
  6. 10  - Front interior monitoring individual sensor → ANTI-THEFT ALARM SYSTEM SENSOR
    • Can only be replaced together with the Anti-Theft Alarm System Sensor -G578-
    G12760272Courtesy of AUDI OF AMERICA, LLC
