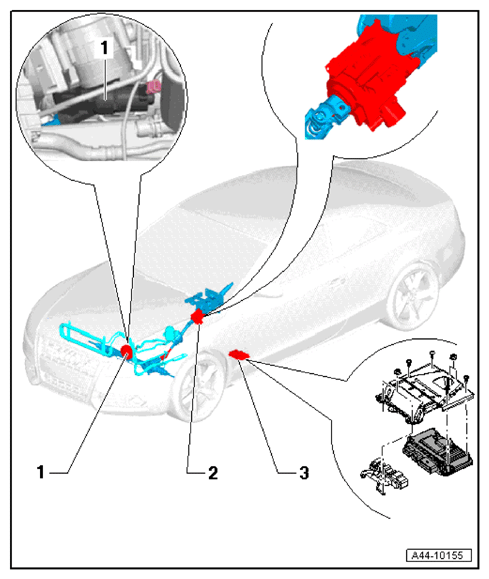

Dynamic Steering Assembly Overview: Notes

  1. Power Steering Pump -V119-
    • The Power Steering Pump And Control Valve Are One Component
    • On 4- And 6-Cylinder Vehicles: Installed On The Front Of The Engine On The Left Side (Belt Drive)
    • On 8-Cylinder Vehicles: Installed On The Back Of The Engine On The Left Side (Chain Drive)
  2. Electro-Mechanical Power Steering Motor -V187-
  3. Active Steering Control Module -J792-
    • Located In The Footwell Under Driver Seat
    G12767131Courtesy of AUDI OF AMERICA, LLC
