Overview Of Control Modules In Interior Of Vehicle

NOTE: Overview Be Valid Also For Avant (5-Door Models)!
  1. 1 - Headlamp Range Control Module -J431-
  2. 1 - Headlamp Range/Cornering Lamp Control Module -J745-
  3. 2 - Fresh Air Blower Control Module -J126-
  4. 3 - Front Information Display Control Head Control Module -J523-
    • Models with MMI Basic
    • Component Location: Behind glove compartment
    • Models with MMI High: → Item  20
  5. 3 - CD Changer -R41-/DVD Changer -R161-
  6. 4 - Front Passenger's Door Control Module -J387-
  7. 5 - Front Information Display Control Head -J685-
  8. 6 - Automatic Day/Night Interior Mirror -Y7- with rain/light recognition sensor -G397-
  9. 7 - Power Sunroof Control Module -J245- with Sunroof Motor -V1-

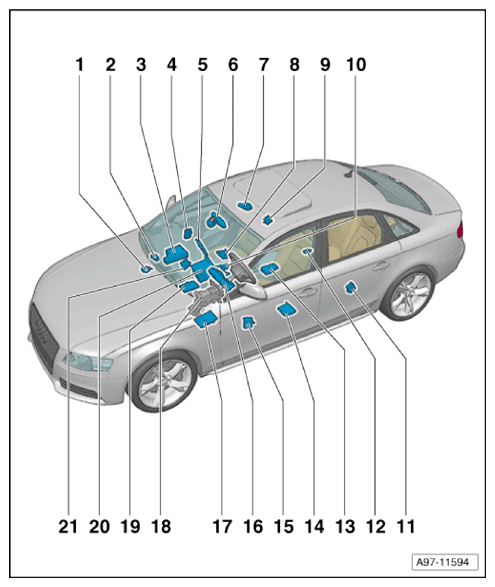

    G12760091Courtesy of AUDI OF AMERICA, LLC
  10. 8 - Telephone Transceiver -R36-
  11. 8 - Passenger Memory Seat Control Module -J521-
    • Component Location: Below front passenger's seat
  12. 9 - Right Rear Door Control Module -J389-
    • Component Location: In right rear door
  13. 10 - Multimedia Control Head -E380-
  14. 11 - Left Rear Door Control Module -J388-
    • Component Location: In left rear door
  15. 12 - Fuel Pump (FP) Control Module -J538-
    • Component Location: Below rear seat
  16. 13 - Airbag Control Module -J234-
  17. 14 - Memory Seat/Steering Column Adjustment Control Module -J136-
    • Component Location: Below driver's seat
  18. 14 - Active Steering Control Module -J792-
  19. 15 - Driver's Door Control Module -J386-
  20. 16 - Instrument Cluster Control Module -J285-
  21. 17 - 16-Pin Connector -T16-, Data Link Connector
  22. 17 - Vehicle Electrical System Control Module -J519-
    G12760091Courtesy of AUDI OF AMERICA, LLC
  23. 18 - Steering Column Electronic Systems Control Module -J527-
    • Component Location: On steering column
  24. 18 - Electronic Steering Column Lock Control Module -J764-
    • Component Location: On steering column
  25. 18 - Multi-function Steering Wheel Control Module -J453-
    • Component Location: On steering column
  26. 19 - Climatronic Control Module -J255-
  27. 20 - Front Information Display Control Head Control Module -J523-
    • Models with MMI High
    • Component Location: In middle part instrument panel
  28. 20 - Control Module for Information Electronics 1 -J794-
  29. 20 - Radio -R- with integrated CD Changer -R41-/DVD Changer -R161-
  30. 21 - Data Bus On Board Diagnostic Interface -J533-
    G12760091Courtesy of AUDI OF AMERICA, LLC
