Automatic Headlamp Range Control, Component Overview

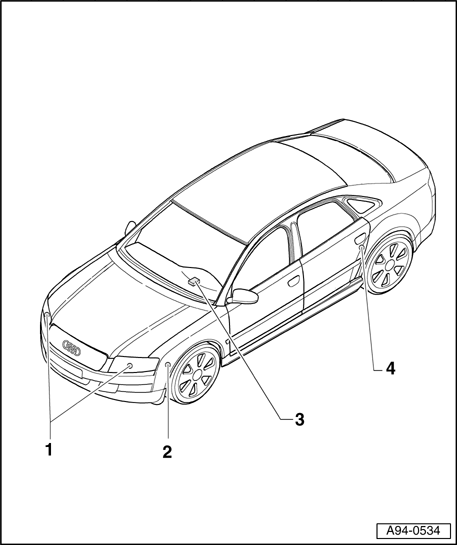

Fig 1: Automatic Headlamp Range Control, Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Headlamp beam adjustment motor

• Left Headlamp Beam Adjustment Motor V48
• Right Headlamp Beam Adjustment Motor V49

2 - Left Front Level Control System Sensor G78

• At front left track control link
• Removing and installing → 43 - Self Leveling Suspension

3 - Headlamp Range Control Module J431

• Component location: Behind instrument cluster at instrument panel support
• Removing and installing → Headlamp Range Control Module, Removing and Installing

4 - Left Rear Level Control System Sensor G76

• Located at left rear axle control arm
• Removing and installing → 43 - Self Leveling Suspension
