Front Pads, Ceramic: Notes
WARNING:
The brake rotor ring and the brake rotor cup are attached to each other and must never be separated. Never loosen the threaded connector on the brake rotor cup.
Check the ceramic brake rotors for damage and wear each time the brake pads are changed.
- Refer to CERAMIC BRAKE ROTOR .
- Refer to CERAMIC BRAKE ROTOR CONNECTORS .

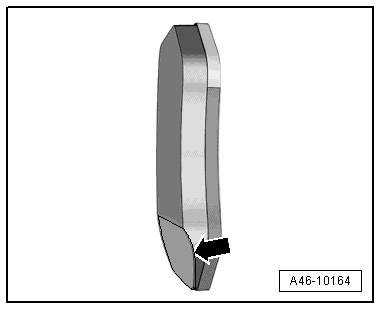

Make sure the brake pads are installed correctly. The brake pad with wear indicator sits inside. The beveled side of the brake pad -arrow- faces downward when installed.
NOTE:
Do not disassemble the brake caliper. Do not loosen any bolts on the brake caliper.
NOTE:
Install on one axle the brake pads from the same manufacturer and with the same quality
