Overview - Window Regulator

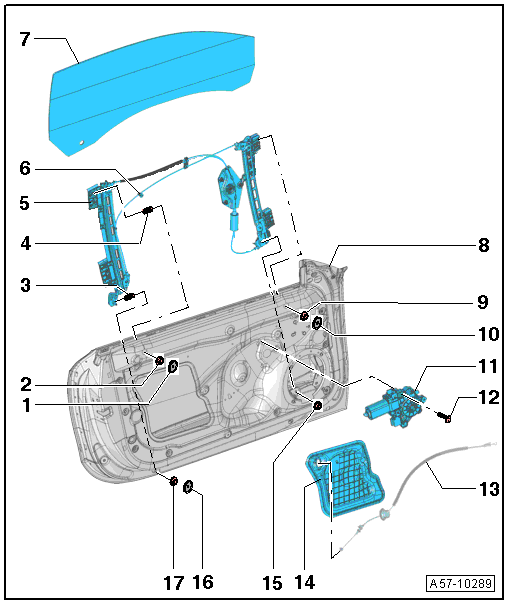

Fig 1: Exploded View Of Window Regulator Motor & Window Regulator Assembly

Courtesy of AUDI OF AMERICA, LLC

Sealing Plugs
Nut
- 9 Nm
Lower Double-Bolt
- For adjusting the window regulator
Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Adjusting. Refer to FRONT DOOR WINDOW, ADJUSTING .
Upper Double Bolt
- For adjusting the window regulator
Retaining Clip
Door Window
- Removing and installing. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
- Adjusting. Refer to FRONT DOOR WINDOW, ADJUSTING .
Door
Nut
- 9 Nm
Sealing Plugs
Window Regulator Motor
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Bolt
- 3.5 Nm
- Quantity: 3
Inside Door Release Mechanism Cable
Cover
- Clipped into the door
- Removing and installing. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
Nut
- 9 Nm
Sealing Plugs
Nut
- 9 Nm
