Power steering gear, adjusting

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Two mechanics are required to perform adjustment. Adjust with engine switched off.

Raise vehicle on lifting platform.
Wheels in straight-ahead position.
Turn steering wheel back and forth (roughly 30° about center axis). This will produce a rattling noise in the event of excessive steering play.
Have second mechanic carefully turn in adjusting screw (arrow) until rattling noise inside vehicle disappears.

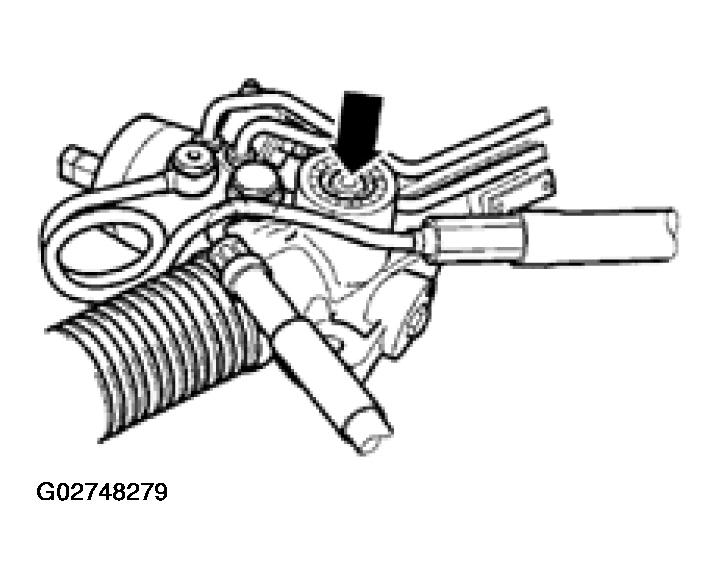

Fig 1: Identifying Steering Gear Adjusting Screw

Courtesy of AUDI OF AMERICA, INC.

Perform test drive.
After maneuvering/cornering, make sure steering returns automatically and smoothly to straight ahead position. Correct setting if necessary.
