Guide, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to items in Fig 1.

Guide
- Bumper removed
  - To remove, unscrew self-tapping Phillips-head screw -2-.
Self-tapping Phillips-head screw
- 1 Nm (9 in. lb)
Clip
Bumper cover
- Removing, see FRONT BUMPER, REMOVING, INSTALLING AND ASSEMBLY OVERVIEW
- When installing, bumper cover must latch cleanly into guide -2-
Nut
- 6 Nm (53 in. lb)
- Accessible only after loosening front half of wheelhousing liner. See WHEELHOUSING LINERS, REMOVING AND INSTALLING or WHEEL HOUSING LINER, REMOVING AND INSTALLING (AUDI RS6) .

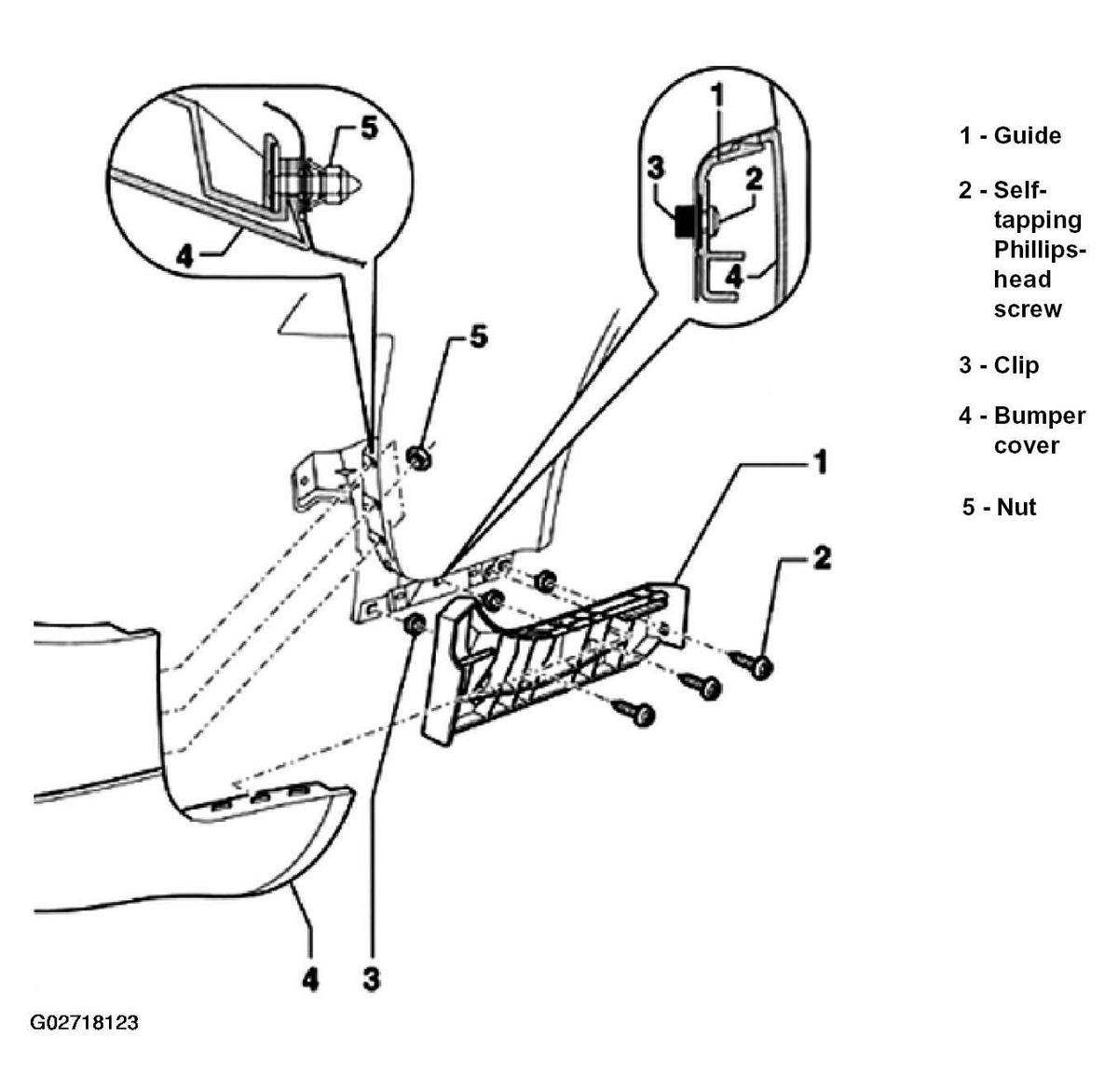

Fig 1: Removing Guide Assembly Components

Courtesy of AUDI OF AMERICA, INC.
